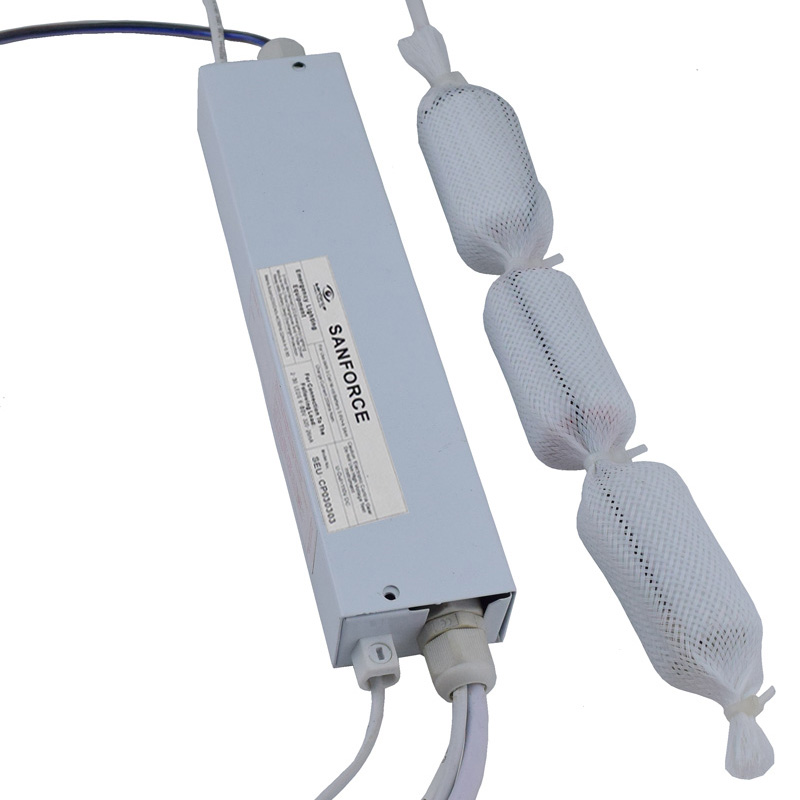

The all-in-one constant power LED downlight emergency conversion kit is specially designed to suit the downlight and panel LEDs. Integrated with a Ni-Cd battery and emergency inverter you don’t need extra packaging and installations.

  •

  • This emergency kit is compatible with the wide range of LED fixtures and runs on the emergency output power of 3W. Designed for all of LED light which can lower the brightness in emergency conditions, the constant power LED downlight emergency conversion kit provides maximum constant output for 3 hours.

    Providing the safest and most efficient led work the constant power supplies the same amount of power regardless of number of lights connected to it.

Benefits

  • Maintain precise current output without jeopardizing the system.
  • Activate automatically in the event of power cuts.
  • The module comes with protection functionality against reverse battery error and short circuit problem.
  • It comes with a test button to inspect the operation of the module.
  • The driver works with a variety of LED fixtures.
  • Certified by CE, RHoS, and EMC.

Product Specifications

  • Model #
  • Driver type:
  • Supported lamp types:
  • Output Emergency Power:
  • Input voltage:
  • Output voltage
  • Charge current (ma):
  • Dimmable:
  • Illumination time (hours):
  • Recharge time (hours):
  • Mode switch time :
  • Self-test ability:
  • Weight (g/pcs):
  • Dimensions (mm):
  • Application Lighting Power Range:
  • Warranty (years):
  • Ambient temperature (℃):
  • Operating temperature (℃):
  • Surge protection:
  • Battery type:
  • Battery dimension (mm):
  • Ip rating w/o casing:
  • Ip rating w casing:
  • Led indicator:
  • Encasing Dimension:
  • SEU-CP030303
  • Constant Power
  • Downlight/Panel
  • 3
  • 220V-240V, AC 50HZ/60HZ
  • 6V~60V DC
  • 200 ± 50
  • Yes
  • 3
  • 24
  • <0.5 Sec
  • No
  • 700
  • 235×52×31
  • 3
  • -20 to 45℃
  • 70
  • Yes
  • Ni-Cd D4000mAh,3.6V
  • φ35mm×260mm
  • 20
  • 67
  • φ5mm Green LED with 300mm Line, 25#
  • 235mm×52mm×31mm
  • Model #: SEU-CP030303
  • Driver type: Constant Power
  • Supported lamp types: Downlight/Panel
  • Output power (watt): 3
  • Input voltage: 220V-240V, AC 50HZ/60HZ
  • Output voltage: 6V~60V DC
  • Charge current (ma): 200 ± 50
  • Dimmable: Yes
  • Illumination time (hours): 3
  • Recharge time (hours): 24
  • Mode switch time : <0.5 Sec
  • Self-test ability: No
  • Weight (g/pcs): 700
  • Dimensions (mm): 235×52×31
  • Warranty (years): 3
  • Ambient temperature (℃): -20 to 45℃
  • Operating temperature (℃): 70
  • Surge protection: Yes
  • Battery type: Ni-Cd D4000mAh,3.6V
  • Battery dimension (mm): φ35mm×260mm
  • Ip rating w/o casing: 20
  • Ip rating w casing: 67
  • Led indicator: φ5mm Green LED with 300mm Line, 25#
  • Encasing Dimension: 235mm×52mm×31mm

No Minimum Requirement (MoQs).

Be it small or big order - We cater to all your project's need

Not sure what you required for your lightining project ?
Get in touch with us for FREE consultation.

Get a Free Quote Download Brochure
